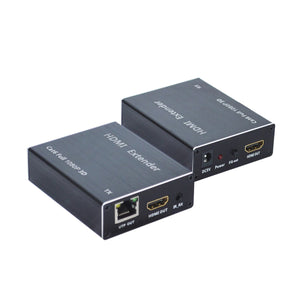

60 Meter (197FT) HDMI Extender Over Single CAT5E/6 w/IR 1080p - Local HDMI loop out with one-band IR Return.

The Extender uses single cat-5E or cat-6(recommended) cable instead of HDMI cable to transmit high definition signal up to 60 meters, cutting down the cost. The Extender is designed to supply for long distance transmission of high definition signal.

Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Features:

* Support HDMI 1.4a
* Support 3D and highest video resolution 1080p/60Hz
* Support 1.65Gbps data rate and TMDS clock up to 165MHz and 8/10/12 bit deep color
* Support AWG26 standard HDMI cable, input up to 15 meters, output up to 20 meters
* Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX (Transmitter) and RX (Receiver).
* Easy Install in minutes and No loss of quality
* DC5V/1A power supply Included

Specifications:

CAT5e/CAT6 cable between RX and TX: Up to 60 meters.
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio input: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support Audio output: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max band rate: 1.65Gbps
Input Video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input HDMI cable distance: =15m AWG26 HDMI standard cable
Output HDMI cable distance: =20m AWG26 HDMI standard cable
TX Max working current: 510mA
RX Max working current: 100mA
Power adapter format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55?)
Operating Humidity range: 5 to 90%RH (No Condensation)

Package Contents

* Main Unit NO.1 Sender x 1
* Main Unit NO.2 Receiver x 1
* 5V DC Power Supply x 2
* User Manual
