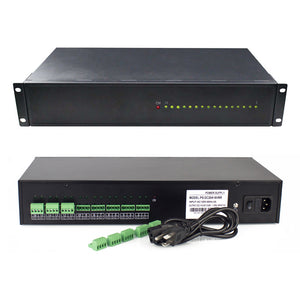

2U Rackmount Power supply CCTV DC 12V 20A 16-Channel w/UPS and PTC.

Professional-grade 2U rackmount power supply engineered for distributed CCTV systems. Delivers stable DC 12V output at 20A across 16 independent channels, ensuring reliable power distribution to multiple cameras simultaneously. Integrated UPS maintains continuous operation during power interruptions, while PTC (Positive Temperature Coefficient) protection safeguards each channel against overcurrent and short-circuit conditions. Compact rackmount design fits seamlessly into standard server racks for organized installation. Ideal for surveillance installations requiring redundant power management and channel-level protection.

***Note: UPS Batteries Not Included***

Specifications:

* Input Voltage: 110V / 120V AC @ 50/60Hz
* Output Voltage: 11V-13.8V DC
* Output Current: 20Amp
* Fuse Type: Resettable PTC Fuse
* Output current: 1.25A
* Output Channel: 16-Channel
* Over-current Protection: 3A±5%
* Output Current Protection: 2Amp PTC
* Ripple & Noise: 100mV
* Efficiency: ≥80%
* Charge Voltage: 13.5V
* Charge Current (Max.):1Amp
* Battery Under-voltage Protection: 10V
* Use of efficient, environmental protection switching power supply circuit frame
* Optimization of the shape and structure to facilitate the construction systems
* Small ripple & noise – video output signal more stable, clearly images
* Splitter output – by-pass failure to protect other equipment to work
* Power protection – Output over-voltage protection, over-current protection, short circuit protection
* Application: CCTV Camera, IP Camera, PTZ, IR Illuminator, DVR, LED Driver, Access Control, etc.

Applications Diagram:

2U Rackmount Power supply Distributed CCTV DC 12V 20A 16-Channel w/UPS and PTC Applications
