[additional] SPECIFICATION AND INSTALLATION-MANUAL [/additional]

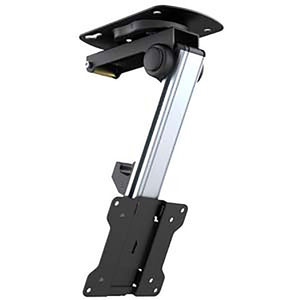

13"~27" Fold-Up Retractable RV TV Ceiling Mount LCD-CM211.

This motorized ceiling mount delivers space-saving convenience for RV living and easy folding lock system allows the TV to be secured in a folded position. The retractable design folds up when not in use, maximizing overhead clearance in compact cabins. Compatible with 13" to 27" TVs featuring VESA patterns up to 100x100mm, it offers smooth operation and secure positioning. The heavy-duty construction withstands road vibrations while the fold-up mechanism provides easy access to storage areas above. Ideal for entertainment on the road without sacrificing valuable interior space.

* Material: Steel
* Color: Fine Texture Black
* Surface Finish: Powder Coating
* Metal Sheet Thickness: 0.059" (1.5mm)
* Compatible Screen Size *: 13"~27"
* Dimensions: 4.5"x6.7"x11.2" (115x171x285mm)
* Max VESA: 100x100mm
* Weight Capacity: 44Lbs (20kg)
* Profile: 3.3" (85mm)
* Tilt Range: -90°~0°
* Swivel Range: 45°
* Installation: Ceiling Mounted
* Panel Type: Detachable Panel
* Wall Plate Type: Fixed Wall Plate
* Cable Management: No
* Anti-Theft: No
* Strength Tested: 3 Times Approved

* Note: Supported screen size is provided as a reference only. Please check the bracket dimensions above and make sure the overall bracket size does not exceed your TV.
