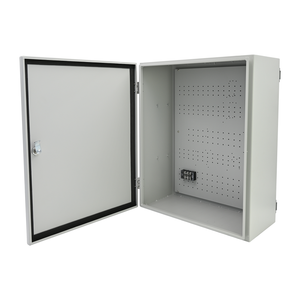

Industrial Waterproof Metal Junction Box Enclosure Only DB20-WP.

Expertly designed for industrial use, the Industrial Waterproof Metal Junction Box Enclosure Only DB20-WP offers secure and reliable protection for electrical connections. Its waterproof design guarantees functionality in harsh environments, while its sturdy metal construction ensures durability. Experience peace of mind with this top-notch junction box enclosure.

Features:

* With sealing strip, it is waterproof, fire-proof and high temperature resistant compared with traditional sealing strip.
* Compared with the traditional hinge, the door is more beautiful to replace, and there is no unsealing or breakage.
* The mounting board has many spare holes to facilitate expanding product installation and electrical engineering wiring and tightening.
* The back panel of the box is equipped with mounting wall holes and hoop grooves. It is equipped with galvanized multifunctional mounting plate.
* High quality cold-rolled or stainless-steel plate: door 1.0MM, box 1.0MM, mounting 1.0MM (galvanized, painted).
* The surface is degreased, pickled, imitated rust phosphating, cleaning, electrostatic spraying, indoor / outdoor two performance, determined according to the customer's use environment.
* Standardize PG series waterproof connectors for safer use. * Internal cooling fan, lower iron box temperature, longer product life.
* The left side of the product can be separately installed with guide rail, which makes DIY more convenient.
* The product is equipped with high power pure copper 3P terminal block, which is more convenient for wiring.

Product Description:

* Size: L 500MM * W 400MM * H 200MM
* Color: matte white gray
* Material: high quality cold rolled steel plate
* Sealing strip: EVA sealing strip
* High power pure copper 3P terminal block, 25A600V
* Door lock: stainless steel 308 outdoor rain proof lock

Packing Accessories List:

* Waterproof iron box x 1PCS
* Matching waterproof joint PG9 x 1PCS
* Matching waterproof joint M22 x 2PCS
* Matching key x 2PCS
* Matching screw PWM3*4 x 4PCS
* Matching screw BM3*8*7 x 6PCS
* User manual x 1PCS
