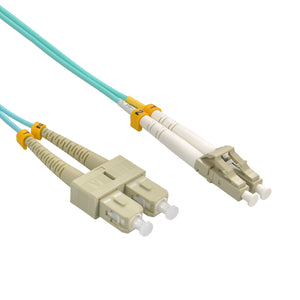

LC/UPC SC/UPC 10Gb 50/125 OM4 Multimode Duplex Fiber Optic Cable Aqua

This LC/UPC to SC/UPC 10Gb 50/125 OM4 multimode duplex fiber optic cable delivers high-speed data transmission with minimal signal loss, ideal for 10 Gigabit Ethernet networks. The OM4 fiber supports extended reach and superior bandwidth performance, while the duplex design ensures full-duplex communication. Its aqua jacket enhances easy identification and durability, making it suitable for data centers and enterprise environments requiring reliable, high-performance connectivity.

* Our high-quality OM4 multi-mode fiber cable with LC/SC connectors is perfect for fast Ethernet, fiber channel, gigabit Ethernet, data center, ATM, and other data applications.
* OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
* With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
* Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
* OFNR (riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
* The small LC connector is perfect for high-density network applications.
* The SC connector with additional latches to secure the installation/removal with similar features to LC connectors.
* Use with LED and VCSEL laser light sources.
* Backward compatible with LED-based 50/125 multimode fiber applications.
* Corning® glass 50μm core and 125μm cladding.
* Test report included in each cable package.
* UL listed.

Connector Type: LC-SC Multimode
Polishing: UPC to UPC
Return Loss: ≥ 55 dB
Insertion Loss: ≤ 0.30 dB
Cabled Optical Fiber: OM4
Nominal Diameter Core: 50/125 µm
Jacket Material: OFNR/LSZH
Jacket Color: Aqua
