[additional] SPECIFICATIONS AND USER MANUAL [/additional]

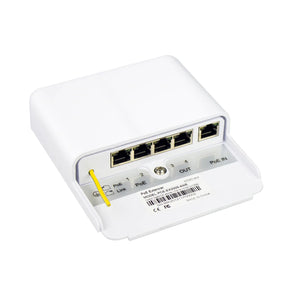

Outdoor Waterproof (1-in/4-out) Gigabit POE Extender.

Ethernet and PoE connections both restrict cable distances to 100 meters between network ports. To overcome this distance limit, network installers can simply connect an PoE Extender in-line with the Cat5e or Cat-6 cable (Outdoor type). With Gigabit PoE Extender, PDs (such as IP Security Cameras, wireless access points) can be installed at greater distances than 100 meters from one another. By connecting PoE Extender for every extra 100 meters of cable, both Ethernet and PoE can be extended to 200 meters, depending on PDs power required and power source.

In additional, Gigabit PoE Extender does not require any additional power supply and the connected PDs is fed by an single PoE switch or mid-span, which simplifies installation. PoE Extender offers Three Gigabt Ethernet ports, which are both configured automatically for link speed, duplex and crossover and the full-rate network throughput is main-tained. PoE in connection PoE Switch, 12.36 or 45.78 powered support, support IEEE802.3af & at the power supply, PoE out for the supply terminal 2 Gigabit, PoE total power can reach 60w [PoE Switch or PoE Injector need to provide IEEE802.3at 4 Pairs(60W)power.

Features:

* Compatible with IEEE802.3af and IEEE802.3at
* Extends the range of PoE and Fast Ethernet an additional 100 meters
* No additional power supply is required
* Automatically detects and protects PoE equipment's from being damaged
* Gigabit Full-rate network throughout the whole extended distance
* Wall-Mountable design
* Easy plug-and-play installation
* Complies with IP66(Support Outdoor rain prevention, need outdoor waterproof UTP cable)

Specification:

No. of Channel: 1(PoE IN) into 4 (PoE OUT)
Pass Through Data Rate: 10/100/1000 Mbps half/full duplex.
Power over Ethernet input: Pin Assignment and Polarity; Both 1/2, 3/6 and 4/5,7/8
Power over Ethernet Output: Pin Assignment and Polarity; 1/2 (+), 3/6 (-); Output Power: up to 25W for 2PSE
Connector: Shielded RJ-45, EIA 568A and 568B
Network Cable: Shielded category 5 (or higher)
Dimension: 230mm x 90mm x 40mm
Mounting: Wall of shelf
Environment: Indoor or outdoor

Environmental Condition:

* Operating Ambient Temperature: -25 to 55?
* Operating Humidity: Complies with IP66(Support outdoor rain prevention, need outdoor waterproof UTP cable)
* Storage Temperature: -30 to 70?

Regulatory Compliance:

* IEEE 802.3af (15.4W)
* IEEE 802.3at (30W)
* IEEE 802.3at 4Pairs(60W)
