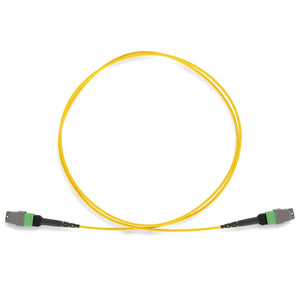

This APC-to-APC MTP® type-A single-mode trunk cable is designed to transmit data in an efficient and reliable...
This APC-to-APC MTP® type-A single-mode trunk cable is designed to transmit data in an efficient and reliable way. It features twelve OS2 9/125 fibers, for high-speed connection, suitable for data center environments. Enjoy state-of-the-art performance and reliable data transmission with this cable. With APC to APC MTP connectors, it is optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4 optics direct connection and high-density data center applications.
* MTP® OS2 push-pull trunk cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.
* OS2 fiber cable features higher bandwidth and transmission rates than OS1 cable.
* OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
* The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.
* Connection type A (Straight-Through).
* Corning® glass SMF-28 Ultra.
* Dust protective cap included
* UL listed

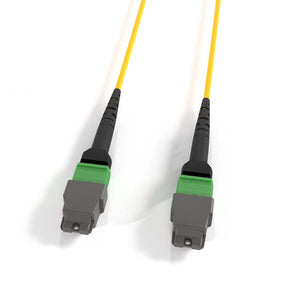

Fiber Connector A: US Conec MTP® Female
Fiber Connector B: US Conec MTP® Female
Fiber Mode: OS2, Single-mode, 9/125
Fiber Count: 12 Fibers
Polish Type: APC to APC
Insertion Loss: ≤ 0.35 dB
Return Loss: ≥ 60 dB
Type (Method): Type A
Jacket OD: 3.0 mm
Fiber Grade: G.657.A1 (Compatible with G.652.D)
Jacket Material: OFNP (Plenum)
Jacket Color: Yellow
