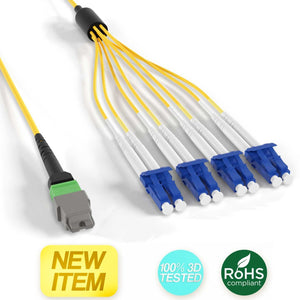

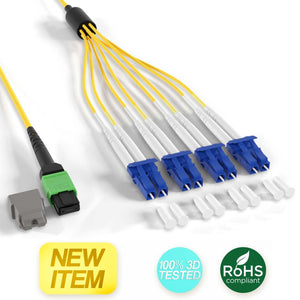

8 Fiber OFNP OS2 9/125 MTP® Female to 4xLCU Duplex SingleMode Breakout Optic Cable Type B, Yellow

MTP® OS2 push-pull breakout cable is designed for high-density connectors and various cable configurations. It is an ideal solution for multi-fibers termination in high-density networks for better space saving and less expensive installation or maintenance costs.

* OS2 fiber cable features higher bandwidth and transmission rates than OS1 cable.
* OFNP (Plenum) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
* The MTP® connector is fully compatible with MPO connector standards with the integrated push-pull mechanism and higher performance.
* Connection type B (Reversed).
* Corning® glass SMF-28 Ultra.
* Dust protective cap included.
* 3D test requirement: 100%
* UL listed

Fiber Connector A: US Conec MTP® Elite Female
Fiber Connector B: LC/UPC *4
Fiber Mode: OS2, Single-mode
Fiber Count: 8 Fibers
Polish Type: APC to UPC
Wavelength: 1310/1550nm
Insertion Loss: MTP/APC: ≤ 0.35 dB; LC/UPC: ≤ 0.20 dB
Return Loss: MTP/APC: ≥ 60 dB; LC/UPC: ≥ 50 dB
Type (Method): Type B
Jacket OD (MTP): 3.0 mm
Jacket OD (LCU): 2.0 mm

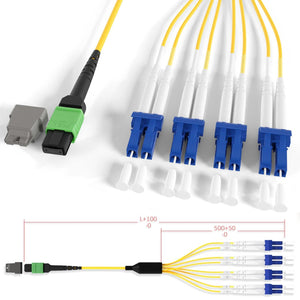

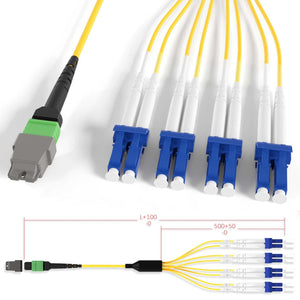

Breakout Length: 0.5 m
Fiber Grade: G.657.A1 (Compatible with G.652.D)
Jacket Material: OFNP (Plenum)
Jacket Color: Yellow
Glass Core: Corning SMF-28 Ultra
