Flat TV Back to Back 1.5" NPT Ceiling Dual Mount 400x400mm CE8-0544
COMPLETE INSTALLATION INSTRUCTION
This ceiling brackett is designed to mount two LCD or LED TV back to back on 1-1/2" NPT (National Pipe Thread) standard p ipe. Applicable screen size is 32" to 55", and it can be tilted down to 12 degrees.

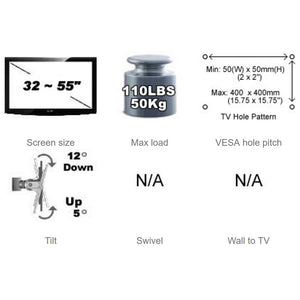

* For 32 to 55" screen size LCD or LED TV
Note: Supported screen size is provided as a reference only. Please check bracket dimensions above, and make sure overall bracket size does not exceed TV.
* Designed for 1.5" NPT pipe mount
* Tilt angle: 5 degree up ~ +12 degree down
* Max Load Capacity: 110lbs (50kg)
* Universal mounting pattern
* VESA hole pitch : Max: : 400 x 400mm (15.75" x 15.75")
* Design and construction: Solid toughened steel construction
* Durable scratch resistant finish in black
* Cable management port
* Mounting hardware included
* Package weight:19.2lbs
* Package size: 24.5 (L) x 8.25 (W) x 4.5" (H)
* Master carton qty: 2 units
* RoHS compliant
** 1 inch = 25.4mm, 1lbs = 0.454Kg **
