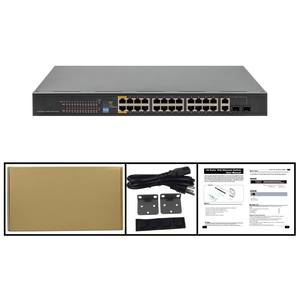

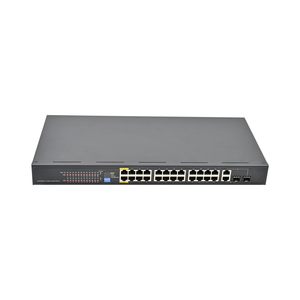

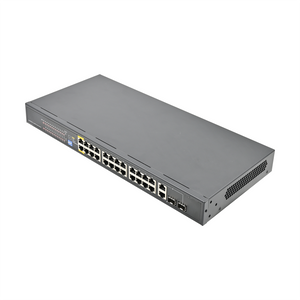

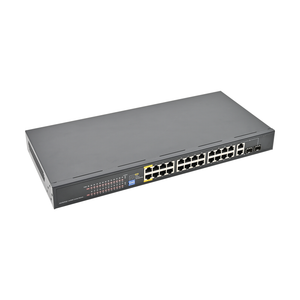

24-Port AI Multifunction PoE Switch 10/100 Base-TX with 2 Gigabit Combo Port Uplink.

24-Port AI Multifunction PoE Switch 10/100 Base-TX with 2 Gigabit Combo Port Uplink Professional-grade network switch designed for enterprise deployments requiring reliable Power over Ethernet distribution. Features 24 10/100 Mbps ports with integrated PoE injection capability, plus two Gigabit combo uplink ports for high-speed backbone connectivity. Built-in AC power supply eliminates external injectors, reducing clutter and complexity. Engineered for stability with 8.8 Gbps backplane bandwidth, IEEE 802.3x flow control, and comprehensive surge protection on both data and power ports. Complies with IEEE 802.3af PoE standards and meets FCC/CE Class B EMI requirements. Rack-mountable design fits seamlessly into standard 19-inch equipment racks for data centers, server rooms, and network closets. Ideal for powering IP cameras, wireless access points, VoIP phones, and other PoE-compatible devices across medium to large installations.

Application Diagrams:

Features:

* AI Multifunction: supports one-key function conversion, currently supports five modes, normal mode, VLAN mode, Extend mode, WATCHDOG mode, QOS mode
* Complies with IEEE 802.3, IEEE 802.3i/u/ab/z
* 24-Port 10/100Mbps RJ45 support PoE output
* 2-Port gigabit Combo (2 RJ45/SFP) for uplink.
* Complies with IEEE 802.3af/at Power over Ethernet.
* Provides 400W Built-in power supply.
* Auto detects powered device (PD).
* Remote power feeding up to 100m.
* 10/100Mbps and 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X
* Store-and-Forward: wire-speed filtering & forwarding rates
* Supporting 8K absolute MAC addresses
* High back-plane bandwidth 52Gbps
* IEEE802.3x Flow control
* EMI standards comply with FCC, CE class B
* Made of metal, rack-mount design, with fan cooling
* 6KV port surge
* UL certification
