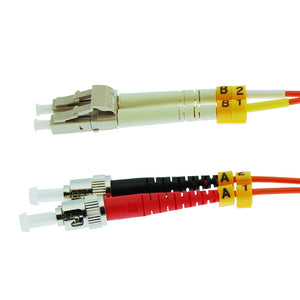

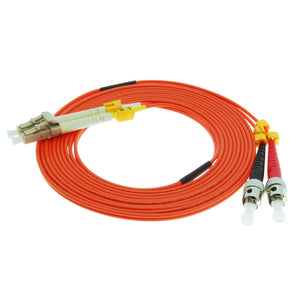

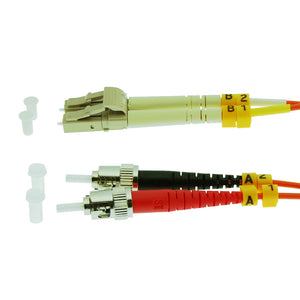

LC/UPC-ST/UPC OM1 Multimode Duplex 62.5/125 Fiber Optic Patch Cable.

OM1 ST-LC Fiber Optic Cable is ready for deployment in any 62.5/125 network. This multimode, duplex fiber cable is comprised of corning optical fiber with ceramic connectors. The connectors utilize a UPC (Ultra Physical Contact) polish which provides a better surface finish with less back reflection with an orange, riser rated, PVC, zipcord jacket.

* Used to connect patch panels and/or network devices that utilize duplex LC style connectors and require OM1 62.5/125 multimode cabling
* Ceramic ferrules provide precise alignment
* Integrated clip ensures correct A/B orientation
* Connectors utilize a UPC polish

Connector Type: LC-ST Multimode
Polishing: UPC
Return Loss: ≥ 55 dB
Insertion Loss: ≤ 0.30 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Cabled Optical Fiber: OM1
Nominal Diameter Core: 62.5/125 µm
Jacket Material: OFNR/LSZH
Operation Temperature Range: -20°C +70°C
