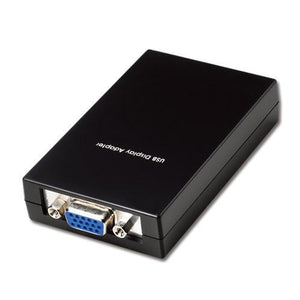

USB 2.0 VGA Display Adapter

California Prop 65

PVC-Coated Products or PVC-Coated Wires and Cables

Warning: Warning: This product can expose you to chemicals (including but not limited to Styrene, BPA, DIISONONYL PHTHALATE, DINP, etc), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information about California Proposition 65, visit California's Government information page at

USB 2.0 VGA Display Adapter.

This USB Display Adapter enables you to connect one more monitor, LCD or projector to a computer with a USB 2.0 port. For desktop users...

Availability: 1 In Stock
Code: 150541
0.56 lb

USB 2.0 VGA Display Adapter.

This USB Display Adapter enables you to connect one more monitor, LCD or projector to a computer with a USB 2.0 port. For desktop users adding an extra monitor via USB connection is easier than ever without having to open the computer chassis to install an internal video card. Once the installation is done, the USB-attached monitor soon wakes up. No function key hassle to swap a second monitor. With this handy adapter, you can enjoy many benefits brought by an add-on monitor. The most obvious one is that you get more desktop area to have more applications visible at one time. For example, you may work on one monitor while your family watching video on the other. No more stacking windows within the confines of a single display. System performance is an important issue when using multiple monitors. Another benefit of this adapter is that it uses little computer resource; ensuring users get quality display without comprising computer performance.

Office workstation:

* View your large spreadsheets across two screens with display continuity
* Multitask more effectively without overlapping windows
* Edit on one screen while surfing the Internet information on the other

On the road:

* Do multiple screen presentations without bringing another computer
* Easily provide multiple screen exhibitions in a trade show

Graphics workstation:

* Use second display for palettes/tools
* Get a panoramic view of large documents

Editing workstation:

* Type documents on one screen while viewing reference material on the other
* Compare two documents simultaneously across two screens

Financial analysis:

* Have one monitor per data stream
* View charts and live data at the same time


* View videos/TV on one screen and reviews on the other
* Get additional perspectives when playing games


* Add-on monitor, LCD or projector through a single USB 2.0 port
* Hot-plug ; add or remove monitor without system reboot
* Small in size, works with all VGA displays.
* Supports High Resolution up to 1920x1080
* Extend and Mirror mode support.
* Resumes from hibernation and suspend modes
* Supports up to 6 USB display adapters to work simultaneously

System Requirements:

The minimum requirements for the PC are:

* With Single Core CPU at 1.2GHz or higher processor clock. Intel® Pentium®/Celeron® family, or AMD® K6®/Athlon™/Duron™ family, or compatible processor
* 512MB memory
* At least one USB2.0 port
* 30Mb of available disk space
* Windows®2000 SP 4, XP Home or Professional (Including Table edition) SP2 or SP3, Vista™ SP1 (32-bit or 64-bit) and Windows® 7 (32-bit or 64 bit).
* Super VGA (800 x 600) or higher resolution monitor

* To play DVD on the adapter-attached monitor, in addition to the requirements above, the following requirements should also be met:

* With dual core CPU at 2.0 GHz processor clock
* The adapter screen resolution be set to 800x600 with 16bit color

In addition to the following processor and memory configurations (base on usage model)

For 1-2 monitors, business usage, productivity target.
* This may not provide full frame rate DVD playback at full screen.

* 1.2GHz Single Core CPU
* 512MB memory

For 3 monitors, where 1 could run DVD video while also targeting productivity and business apps.
* Will support only 1 video of DVD resolution at full screen:

* 1.8GHz CPU
* 1GB memory

For 6 screen where 1 screen can run full screen DVD video:

* 1.6GHz Core Duo
* 1GB memory



AC Plug

US 2-Prong / UL 2-Prong x1


RJ-45 x 1

PLC Interface

Compliant Standards

HomePlug AV 1.0

Maximum Data Rate

85 Mbps

Line Coding Format


Spread Spectrum Method


Powerline Frequency Band

4.3Mhz to 20.9Mhz



Multi-Access Method



Network Type


Data Link Protocol

Ethernet, Fast Ethernet

Encryption Algorithm

56-bits DES

Maximum Nodes

Up to 15 nodes per network

Compliant Standards

IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-TX)



  • On: Device power is On
  • Off: Device power is Off

Powerline Link/Activity

  • On: Another Powerline device has been detected in the same logical Powerline network
  • Blinking : Powerline activity, transmit or receive
  • Off: No other Powerline device is detected or device is off


  • On: Indicate the presence of other 85Mbps turbo device
  • Off: No other 85Mbps turbo device

Ethernet Link/Activity

  • On: Ethernet link
  • Blinking : Ethernet activity, transmit or receive
  • Off: No Ethernet link is detected


Power Mode


Power System Voltage

100~240V AC10%, 50~60 Hz

Power Consumption

Stand by G50mA , Working G80mA

Physical Specifications

Housing Material

ABS (Plastic)


96.7 (L) x 69.5 (W) x 39.2 (H) mm



Environmental Specifications

Operating Temperature

10-40 XC

Storage Temperature

-10~80 XC

Relative Humidity

< 85% non-condensing

Regulatory Compliances

Safety, EMI


Package Contents:

* USB Display Adapter x1
* Driver CD x1
* USB Cable x1
* Quick Installation Guide x1
* DVI to VGA Adapter(Optional) x1
