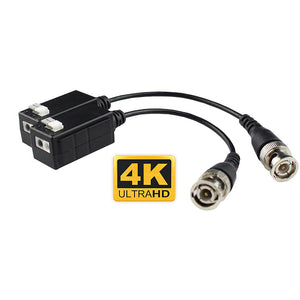

Single Channel HD Passive Video Balun Transceiver 4K.

Features

* Attachable Design, Extend One Channel to Multi-Channel
* No Power Required
* Compatible with EX-SDI, HD-TVI,HD-CVI, AHD Signal
* Push-in Terminal Block
* Transmission Signal: EX-SDI 100M, HD-TVI, 250M, HD-CVI 300M, AHD 300M
* Built-in Surge & Transient Protection
* Super Interference Rejection

Specifications

* Video Format: PAL, NTSC, SECAM
* Operating Frequency: DC to 42MHz
* Max Distance: 720P 300m & 1080P 200m
* Common-mode/Differential-mode Rejection: 15KHz to 42MHz 60 dB type
* Impedance: Coax, Male BNC 75 ohms unbalanced & UTP, RJ45 100 ohms balanced
* Attenuation: 1.5 dB Max
* Network Wiring: One Unshielded Twisted Pair(for each video signal) 24-16AWG(0.5-1.31mm)
* Category Type: 2 or better
* Impedance: 100±20 ohms
* DC Loop Resistance: 52 ohms per 1000ft(18 ohms per 100m)
* Differential Capacitance: 19 pF/ft max(62 Pf/m max)
* Power Input: No external Power Required
* Power Transmission: 12VDC/24VAC, via UTP CAT5E/6
* Video Input/Output: Male BNC Connector
* Video Input/Output: RJ45 Jack
* Surge Protection: Renewable Solid State Surge Protection
* Video Input: 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)
* Video Output: 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)
* Housing: ABS engineering plastic
* Body Color: Black
* Dimensions(L*W*H): 60*30*21MM
* Net Weight: 60g
* Operating Temperature: -20 ~ 70
* Relative Humidity: 0~95%(non-condensing)
* Storage Temperature: -40 ~ 150 ℃
* Applied Devices: CCTV Cameras , Monitors, DVR and other CCTV equipment
