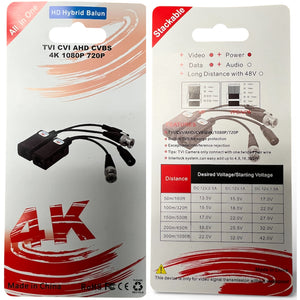

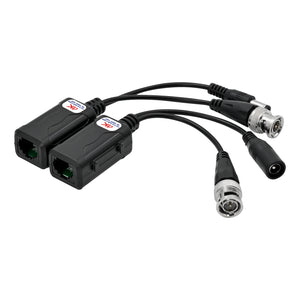

Single Channel HD Video Balun w/Power Transceiver

Single Channel HD Video Balun w/Power Transceiver. Features * Real-time Transmission over UTP cat5e/6 * Compatible with all HD-TVI,CVI and AHD analog camera * Stackable Design, Extend One Channel to...
$14.99
$8.95
Availability: 10000 In Stock
Code: 180808
0.18 lb

Single Channel HD Video Balun w/Power Transceiver.

Features

* Real-time Transmission over UTP cat5e/6
* Compatible with all HD-TVI,CVI and AHD analog camera
* Stackable Design, Extend One Channel to Multi-Channel
* RJ45 Jack for UTP cable
* Built-in Surge and Lightning Protection
* Super Interference Rejection

Specifications

* Applied Devices: CCTV Cameras , Monitors, DVR and other CCTV equipment's
* Video Format: PAL, NTSC, SECAM
* Operating Frequency: DC to 42MHz
* Max Distance: 720P 300m & 1080P 200m
* Common-mode/Differential-mode Rejection: 15KHz to 42MHz 60 dB type
* Impedance: Coax, Male BNC 75 ohms unbalanced / UTP, RJ45 100 ohms balanced
* Attenuation: 1.5 dB typ Max
* Network Wiring: One Unshielded Twisted Pair(for each video signal) 24-16AWG(0.5-1.31mm)
* Category Type: 2 or better
* Impedance: 100±20 ohms
* DC Loop Resistance: 52 ohms per 1000ft(18 ohms per 100m)
* Differential Capacitance: 19 pF/ft max(62 Pf/m max)
* Video Input/Output: Male BNC Connector
* Video Input/Output: RJ45 Jack
* Surge Protection: Remewable Solid State Surge Protection
* Video Input: 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)
* Video Output: 2KV(common mode), 10/700us IEC6100-4-5/1955(GB/T 1726,5-1999)
* Housing: ABS engineering plastic
* Body Color: Black
* Dimensions(L*W*H): 60.4*29*20.4MM(BNC Connector & cable excluded)
* Net Weight: 80g
* Operating Temperature: -20 ~ 70
* Relative Humidity: 0~95%(non-condensing)
* Storage Temperature: -40 ~ 150 ℃
