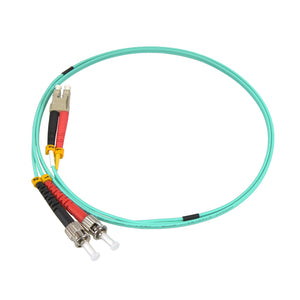

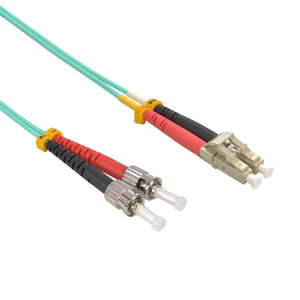

LC/UPC-ST/UPC 10Gb 50/125 OM3 Multimode Duplex Fiber Optic Cable Aqua.

The LC/UPC-ST/UPC 10Gb 50/125 OM3 Multimode Duplex Fiber Optic Cable in aqua is engineered for high-speed data transmission up to 10Gbps. Featuring OM3 multimode fiber with 50/125 micron core/cladding, it ensures low attenuation and excellent signal integrity over medium distances. The duplex design facilitates simultaneous bidirectional communication, making it ideal for data centers and enterprise networks requiring reliable, high-performance connectivity. Its standardized LC and ST connectors provide compatibility with a wide range of optical equipment.

* Our premium quality OM3 multi-mode fiber cable with LC/ST connectors is perfect for high-throughput applications.
* Support 10Gb up to 300 meters, 40Gb, and 100Gb up to 100 meters.
* LSZH/OFNR (Riser) rated fiber cable is ideal for use in upright shafts that run between floors in the building.
* The small LC connector is perfect for high-density network applications.
* The other ST connector is designed with a bayonet mount and locking system.
* Use with LED and VCSEL laser light sources.
* Backward compatible with LED-based 50/125 multimode fiber applications.
* Corning® glass 50μm core and 125μm cladding.
* Test report included in each cable package.
* UL Listed

Connector Type: LC-ST Multimode
Polishing: UPC to UPC
Return Loss: ≥ 55 dB
Insertion Loss: ≤ 0.30 dB
Cabled Optical Fiber: OM3
Nominal Diameter Core: 50/125 µm
Jacket Material: OFNR/LSZH
Jacket Color: Aqua
