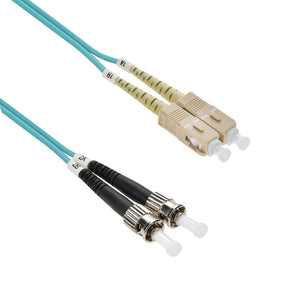

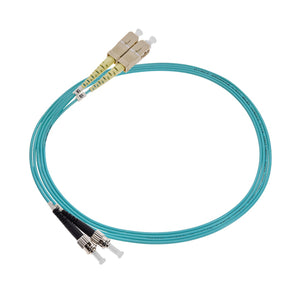

SC/UPC-ST/UPC 10Gb 50/125 OM3 Multimode Duplex Fiber Optic Patch Cable Aqua.

The SC/UPC-ST/UPC 10Gb 50/125 OM3 Multimode Duplex Fiber Optic Patch Cable in Aqua is engineered for high-speed data transmission. Designed with OM3 multimode fiber and a 50/125 micron core, it supports 10 Gigabit Ethernet, ensuring reliable performance in data centers and enterprise networks. Its duplex configuration enables simultaneous bi-directional communication, while the SC/UPC and ST/UPC connectors provide secure, low-loss connections. The aqua jacket color indicates OM3 standard for easy identification in fiber installations. Ideal for demanding network environments requiring stable, high-bandwidth connectivity.

Connector Type: SC-ST Multimode
Polishing: UPC to UPC
Return Loss: ≥ 55 dB
Insertion Loss: ≤ 0.30 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Cabled Optical Fiber: OM3
Nominal Diameter Core: 50/125 µm
Jacket Material: OFNR/LSZH
Jacket Color: Aqua
Operation Temperature Range: -20°C +70°C
