8-Port Gigabit Outdoor Industrial PoE Switch w/Waterproof Enclosure Box.

8-Port Gigabit Outdoor Industrial PoE Switch w/Waterproof Enclosure Box Professional-grade networking solution built for demanding outdoor environments. This rugged switch delivers reliable Gigabit connectivity with integrated Power over Ethernet (PoE) capability, eliminating the need for separate power lines to connected devices. Engineered for harsh conditions with IP67-rated waterproof protection that withstands rain, snow, dust, UV exposure, and oil spray. The durable ABS enclosure provides exceptional impact resistance and electrical insulation, keeping your network infrastructure safe in extreme weather. Features a pre-installed mounting plate for quick installation of PCB boards and electrical components. Lockable design prevents unauthorized access while the lightweight construction simplifies deployment. Ideal for outdoor surveillance systems, industrial automation, remote monitoring stations, and any application requiring weatherproof network connectivity in challenging environments.

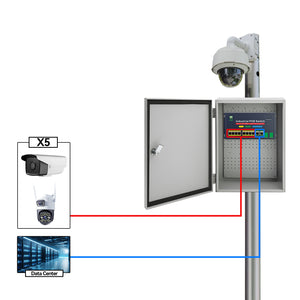

Application Diagrams:

* Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
* 8-Port 10/100/1000Mbps supports 52V DC power to PoE Powered Device.
* 4-Port gigabit uplink: 2RJ45 + 2SFP.
* Complies with IEEE 802.3af/802.3at PoE End-Span PSE.
* Auto detects powered device (PD).
* Circuit protection prevents power interference between ports.
* Remote power feeding up to 100m.
* Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X.
* Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
* IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation.
* Integrates address look-up engine, supporting 8K absolute MAC addresses.
* 2M packet buffer.
* 10K Jumbo frame supports at 1000Mbps duplex mode.
* IEEE 802.1Q VLAN packet transparency support.
* Automatic address learning and address aging.
* Made of metal, desktop size and wall-mount design.
* Wall mount and bind mount.
* 6KV lightning protection.
* Outdoor waterproof box, IP65.
***Power Supply Not Included.***
