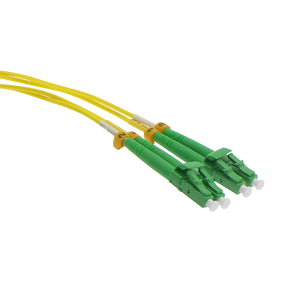

LC/APC-LC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

This LC/APC-LC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable is designed for high-performance optical networking. Featuring a 9/125µm single-mode fiber core, it ensures minimal signal loss and superior data transmission over long distances. The 2.0mm OFNR-rated jacket provides flame resistance and durability suitable for indoor installations. Equipped with precision-polished LC/APC connectors on both ends, it delivers low back reflection and excellent connection reliability, ideal for professional-grade telecom and data center applications.

* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling.

* 1/2 Markers easily identify the TX and RX connector on each end of the assembly.

Connector Type: LC-LC Duplex SingleMode
Polishing: APC
Return Loss: ≥ 60dB
Insertion Loss: ≤ 0.25 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR/LSZH
Operation Temperature Range: -20°C +70°C
Cable Diameter: 2.0mm
