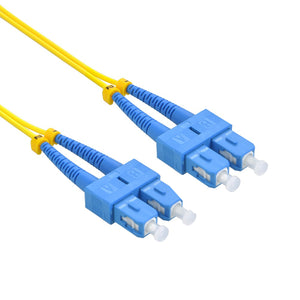

SC/UPC-SC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

The SC/UPC-SC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable offers precision optical connectivity with low insertion loss and high return loss. Designed for single-mode applications, it features 9/125 µm fiber core/cladding dimensions and a rugged 2.0mm OFNR-rated jacket for indoor, riser use. This duplex cable ensures reliable, high-speed data transmission and minimal signal attenuation, ideal for telecom, data centers, and network infrastructure requiring durable and efficient fiber optic links.

* Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single mode cabling
* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
* A/B Markers easily identify the TX and RX connector on each end of the assembly
* Connectors utilize a UPC polish

Connector Type: SC-SC Duplex Singlemode
Polishing: UPC
Return Loss: ≥ 55dB
Insertion Loss: ≤ 0.30 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR/LSZH
Temperature Range: -20°C +70°C
