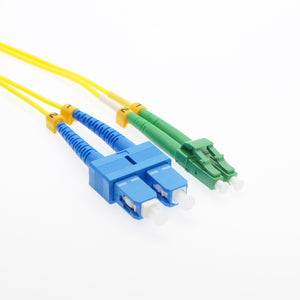

SC/UPC-LC/APC Singlemode Duplex 9/125 Fiber Optic Patch Cable

The SC/UPC-LC/APC Singlemode Duplex 9/125 Fiber Optic Patch Cable offers high-performance connectivity for precise optical networks. Featuring duplex singlemode 9/125 fiber, it ensures minimal signal loss and superior transmission quality. The SC connector with UPC polish on one end and the LC connector with APC polish on the other provide reliable, low-reflection connections ideal for professional telecom and data center applications. This cable is designed to support long-distance, high-bandwidth communication with excellent durability and stability.

* Used to connect patch panels and/or network devices that utilize SC to LC style connectors and require 9/125 Single mode cabling

* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.

* 1/2 Markers easily identify the TX and RX connector on each end of the assembly

Connector Type: SC-LC Duplex Singlemode
Polishing: SC/UPC-LC-APC
Return Loss: A:≥ 55dB - B:≥ 60dB
Insertion Loss: ≤ 0.25 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR/LSZH
Temperature Range: -20°C +70°C
