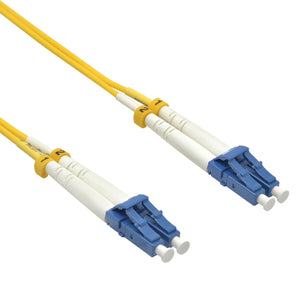

LC/UPC-LC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

The LC/UPC-LC/UPC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable is engineered for high-precision data transmission in networking systems. Featuring a 9/125 micron singlemode core, it ensures minimal signal loss over long distances. The duplex design enables simultaneous bidirectional communication, ideal for complex infrastructures. With a robust 2.0mm OFNR-rated jacket, it meets fire safety standards while maintaining flexibility for easy installation. This cable is perfect for environments requiring reliable, high-performance optical connections.

* Used to connect patch panels and/or network devices that utilize LC to LC style connectors and require 9/125 Single mode cabling
* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.
* A/B Markers easily identify the TX and RX connector on each end of the assembly
* Connectors utilize a UPC polish

Connector Type: LC-LC Duplex Singlemode
Polishing: UPC
Return Loss: ≥ 55 dB
Insertion Loss: ≤ 0.30 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR/LSZH
Operation Temperature Range: -20°C +70°C
Cable Diamter: 2.0mm
