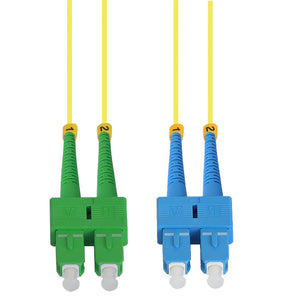

SC/UPC-SC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

The SC/UPC-SC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable offers reliable high-speed data transmission with superior low-loss connections. Its 9/125μm singlemode fiber optimizes long-distance signal integrity, while the duplex design supports simultaneous bidirectional communication. The OFNR-rated jacket provides flame-retardant properties ideal for indoor installations. With a compact 2.0mm diameter, this patch cable ensures easy routing in dense network environments, making it a professional-grade solution for demanding fiber optic networks.

* Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single mode cabling

* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.

* 1/2 Markers easily identify the TX and RX connector on each end of the assembly

Connector Type: SC-SC Duplex Singlemode
Polishing: SC/UPC-SC/APC
Return Loss: A:≥ 55dB - B:≥ 60dB
Insertion Loss: ≤ 0.25 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR/LSZH
Temperature Range: -20°C +70°C
