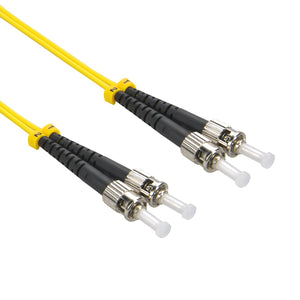

ST/UPC-ST/UPC Singlemode Duplex 9/125 OFNR 2.0mm Fiber Optic Patch Cable

This ST/UPC-ST/UPC Singlemode Duplex 9/125 OFNR 2.0mm Fiber Optic Cable delivers reliable high-speed data transmission with minimal signal loss. Designed for singlemode applications, it features duplex connectors for efficient two-way communication. The 9/125 µm core/cladding diameter ensures precise light propagation, while the OFNR-rated jacket offers flame retardance for safer indoor installation. Its 2.0mm diameter balance flexibility and durability, making it suitable for professional networking, telecommunications, and data center environments requiring stable, long-distance fiber optic connections.

* Used to connect patch panels and/or network devices that utilize ST to ST style connectors and require 9/125 Single mode cabling
* 100% tested
* Test report included in each cable
* 1/2 Markers easily identify the connector on each end of the assembly

Connector Type: ST-ST Singlemode
Polishing: UPC
Return Loss: ≥ 55dB
Insertion Loss: ≤ 0.30 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR
Operating Temperature Range: -20°C +70°C
