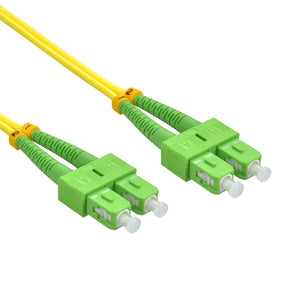

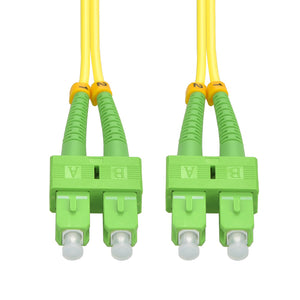

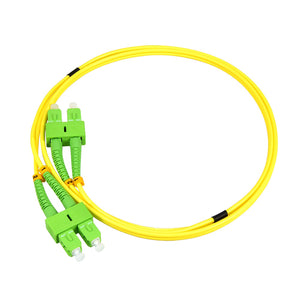

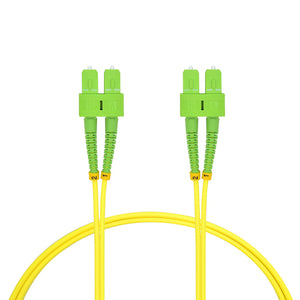

SC/APC-SC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable

California Prop 65

PVC-Coated Products or PVC-Coated Wires and Cables

Warning: Warning: This product can expose you to chemicals (including but not limited to Styrene, BPA, DIISONONYL PHTHALATE, DINP, etc), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information about California Proposition 65, visit California's Government information page at www.P65Warnings.ca.gov

SC/APC-SC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

* Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single...

$5.20
Availability: 9994 In Stock
Code: 105113
0.09 lb

SC/APC-SC/APC SingleMode Duplex OFNR 2.0mm 9/125 Fiber Optic Patch Cable.

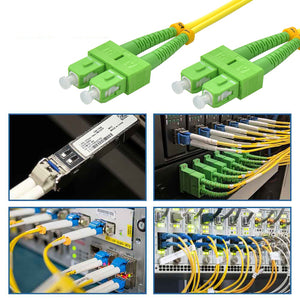

* Used to connect patch panels and/or network devices that utilize SC to SC style connectors and require 9/125 Single mode cabling.

* Flexible boots are able to be bent and set in different orientations to accommodate tight spaces.

* 1/2 Markers easily identify the TX and RX connector on each end of the assembly

* Connectors utilize a APC polish

Connector Type: SC-SC Duplex Singlemode
Polishing: SC/APC-SC-APC
Return Loss: ≥ 60dB
Insertion Loss: ≤ 0.25 dB
Ferrule Material: Ceramic (zirconia)
Ferrule Diameter: 1.25 mm / 2.5 mm
Body Type: Duplex
Nominal Diameter Core: 9/125 µm
Jacket Material: OFNR/LSZH
Temperature Range: -20°C +70°C
